Edge & Blade Geometry

Take a closer look at what actually makes a knife cut the way it does. Blade geometry, edge geometry, and grind style all play a role—from single- and double-bevel designs to full flat, hollow, and S-grinds. Once you understand how these elements work—and how sharpening choices affect performance—you’ll be able to choose, use, and maintain your knives with a lot more confidence.

EDGE & BLADE GEOMETRY OVERVIEW

Comparison of double-bevel and single-bevel geometry on a white background

Edge & Blade Geometry

What Is Knife Geometry?

Knife geometry determines how a blade moves through food. It’s shaped by two main elements: the way the blade is formed and the way the edge is sharpened.

Blade geometry in double-bevel knives refers to how the knife tapers from the spine down to the cutting edge. This includes different grind styles—like full flat, half flat, hollow, and S-grinds—as well as whether that taper is even or offset from side to side.

Edge geometry refers to how the cutting edge is applied. On double-bevel knives, the edge is sharpened on both sides—either symmetrically for a balanced, ambidextrous feel, or asymmetrically for a more directional cutting experience. When sharpened asymmetrically, the edge becomes hand-specific, favoring either right- or left-handed use.

Single-bevel knives use a different blade and edge geometry system altogether. Instead of tapering from both sides, the blade is primarily shaped from one side, with a wide bevel on the front and a slightly concave back. This creates a more aggressive taper and highly precise cutting performance, but also makes the knife specific to right- or left-handed use.

Understanding how blade geometry and edge geometry work together gives you more control over how a knife performs—and how it feels in use.

Edge & Blade Geometry

Double-Bevel Blade Geometry (Even Taper / Grind Types)

Blade geometry refers to how a knife tapers from the spine down to the cutting edge. This taper plays a major role in how a knife moves through food—affecting thickness behind the edge, resistance, and food release.

In double-bevel knives, this taper is created evenly from both sides of the blade and can take several forms. Common grind styles include full flat, half flat, hollow, and S-grinds. Each offers a different balance of cutting performance, durability, and feel.

While these shapes define how the blade passes through food, they do not determine how the edge is sharpened.

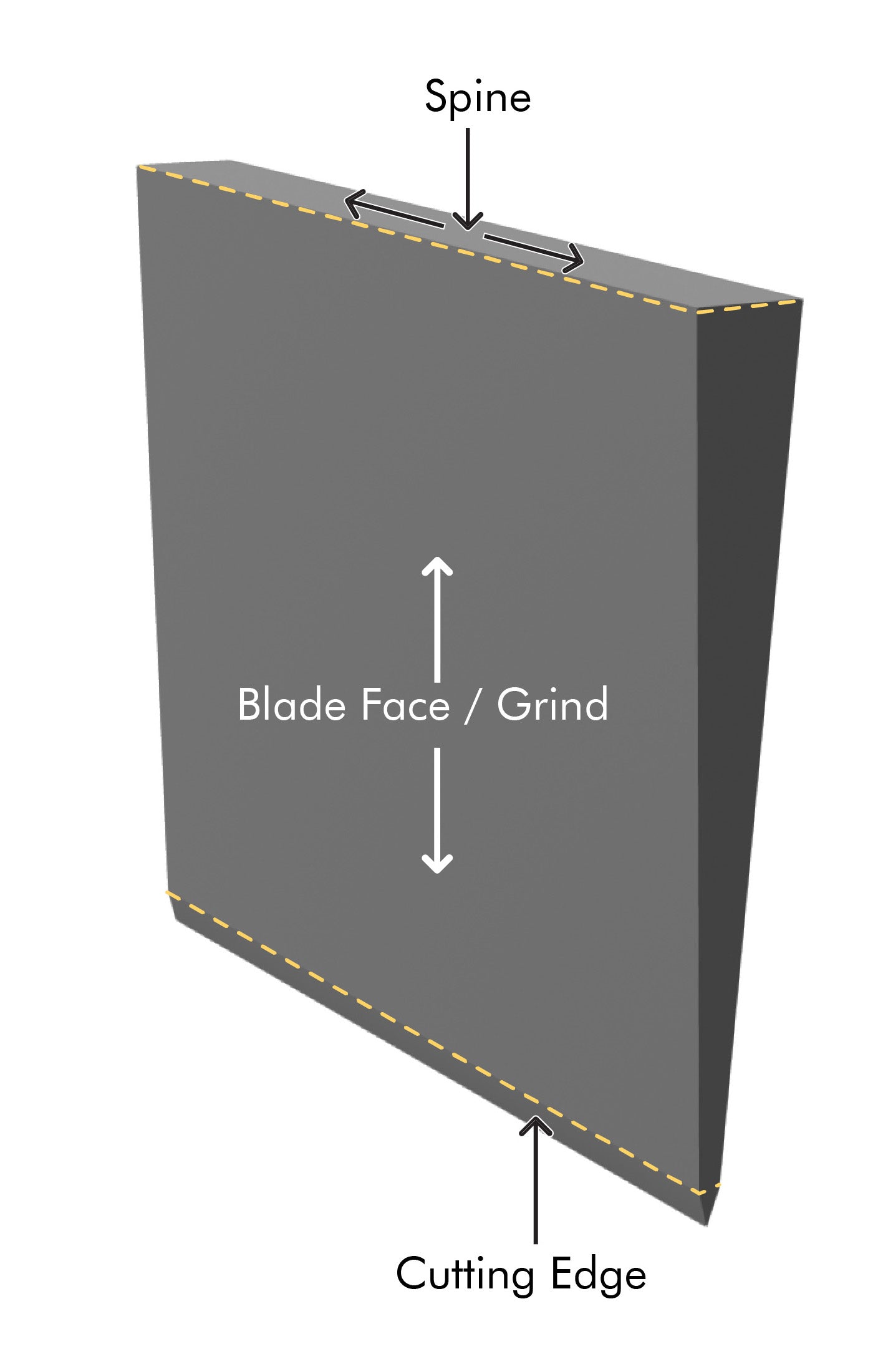

Diagram of Symmetrical Double-Bevel Full-Flat Grind

Full Flat Grind

Even taper from spine to edge for balanced cutting and easy maintenance.
Diagram of Symmetrical Double-Bevel Half-Flat Grind

Half Flat Grind

Taper begins midway down the blade, adding strength while maintaining good cutting performance.
Diagram of Symmetrical Double-Bevel Hollow Grind

Hollow Grind

Concave grind reduces drag and improves food release, with less material behind the edge.
Diagram of Symmetrical Double-Bevel S-Grind

S-Grind

A compound grind with a raised hollow above the edge, improving food release while maintaining strength near the cutting edge.

Blade geometry sets the foundation for how a knife moves through food—the cutting edge builds on that foundation.

Edge & Blade Geometry

Offset Double-Bevel Blade Geometry (Uneven Taper / Grind Types)

Knives with asymmetrical blade geometry taper more on one side than the other. This creates a directional cutting feel and is typically designed for either right- or left-handed use.

Because the blade itself is uneven, the edge should be sharpened to match. When the blade is offset, the edge should follow.

This type of geometry is most commonly found in Japanese cutlery, though some modern Western makers incorporate it as well.

Different variations of offset taper—such as convex, flat, or partial—affect how the blade moves through food and how aggressively it tracks during a cut.

These knives are not ambidextrous.

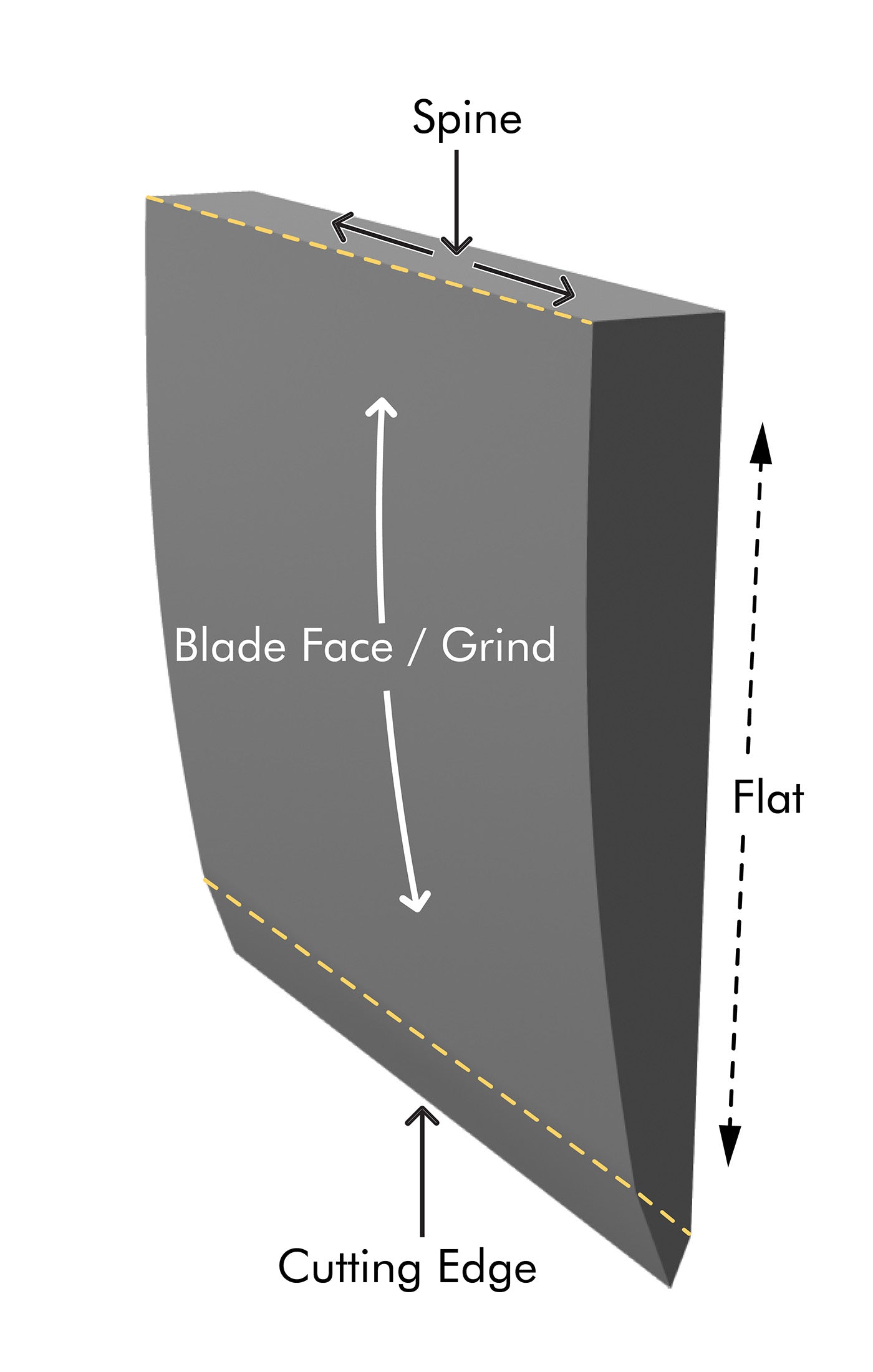

Diagram of Asymmetric Curved Grind

Curved

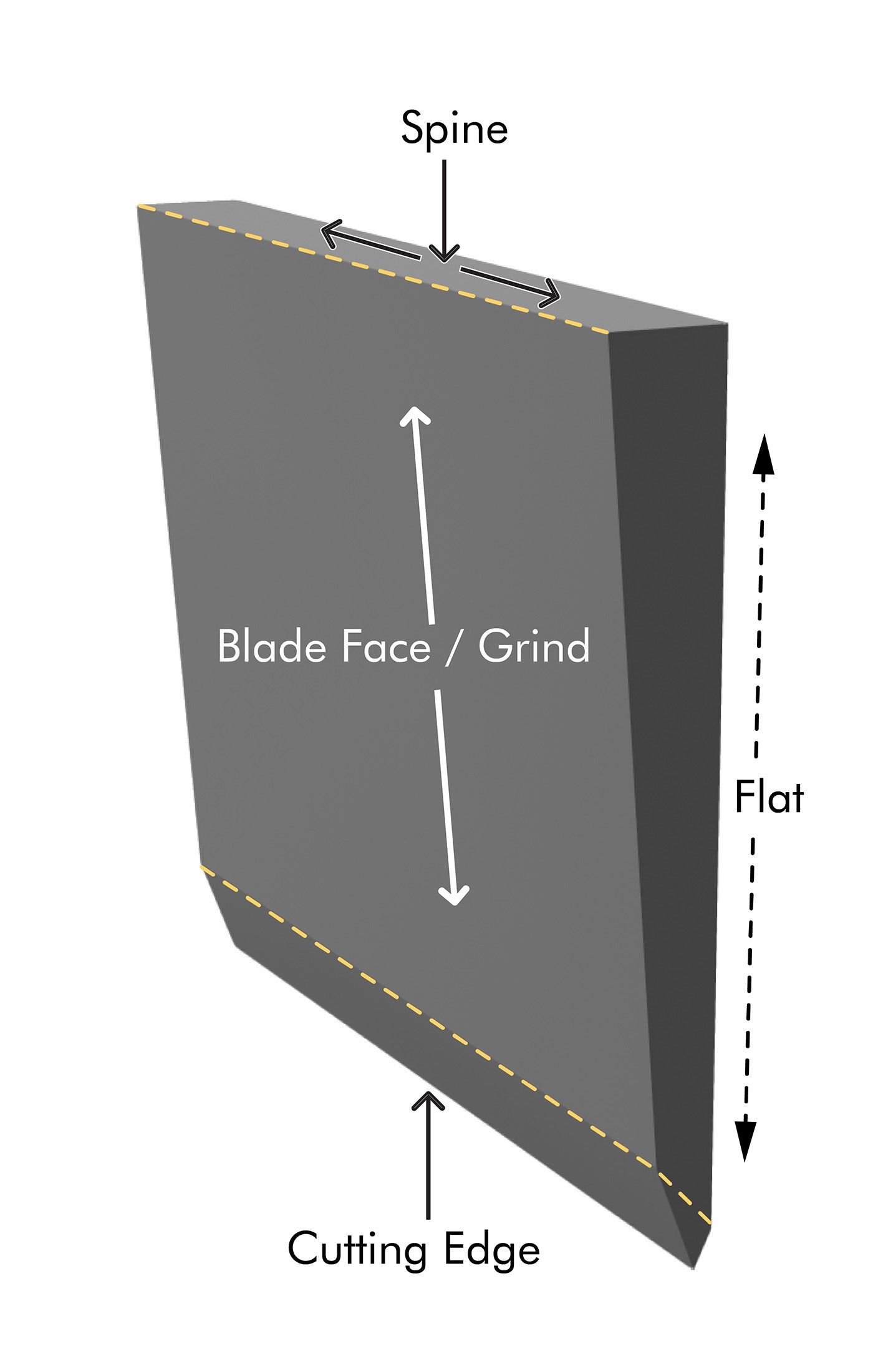

Diagram of Asymmetric Full-Flat Grind

Full Flat

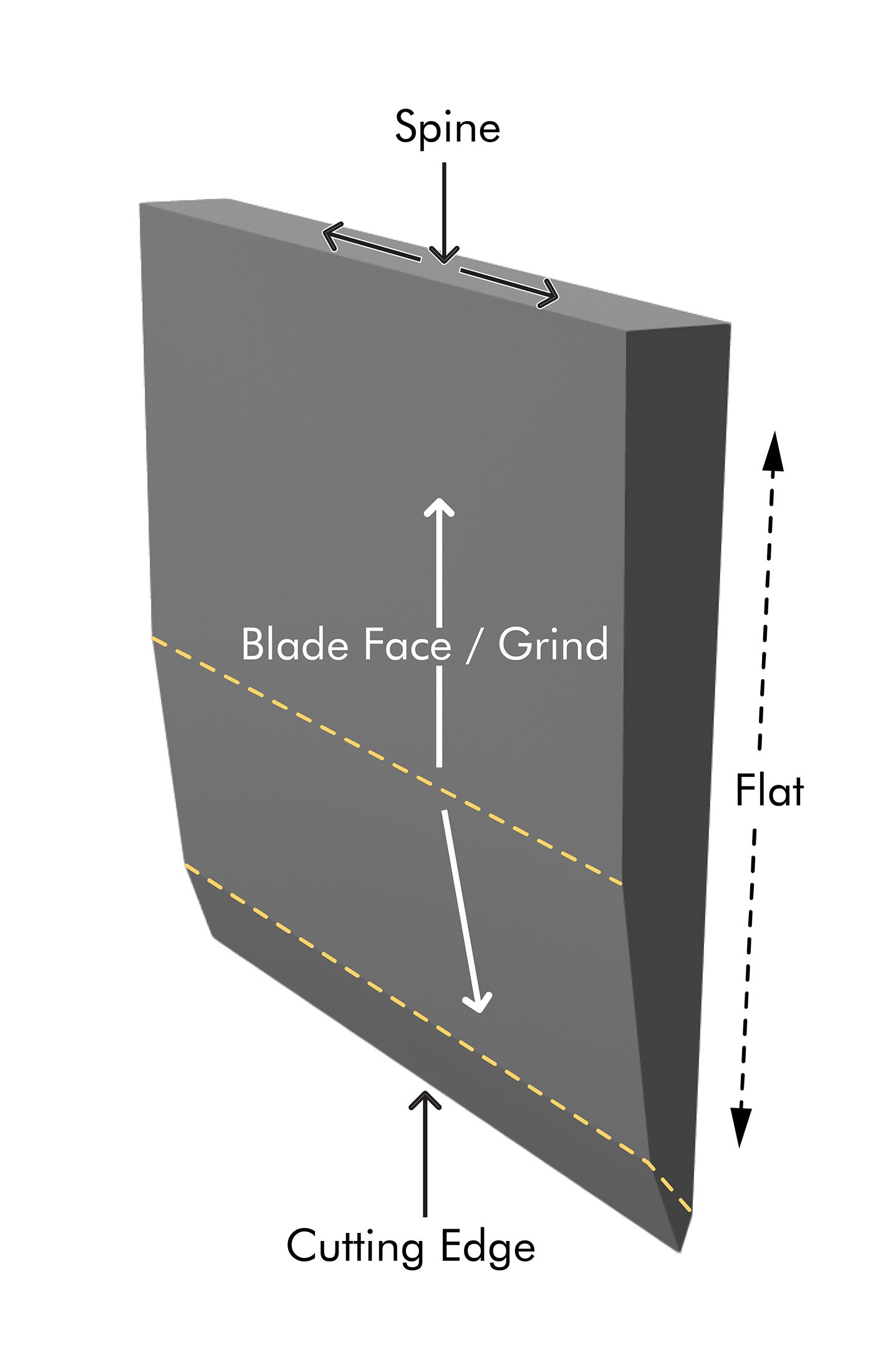

Diagram of Asymmetric Half-Flat Grind

Half Flat

These are still double-bevel knives, but with an uneven taper—not to be confused with single-bevel knives, which use a different geometry system altogether.

Edge & Blade Geometry

Double-Bevel Edge Geometry (Symmetrical & Asymmetrical)

Edge geometry refers to how the cutting edge is applied to the blade. On double-bevel knives, the edge is sharpened on both sides to form the cutting apex. The sharpening angle (degree) remains consistent from side to side—whether the edge is symmetrical or asymmetrical.

A symmetrical edge (50:50), regardless of the chosen angle, is sharpened equally on both sides, creating a balanced, centered cutting edge. This results in a neutral cutting feel and is suitable for both right- and left-handed users.

An asymmetrical edge (such as 70:30, 80:20, or 90:10) is sharpened at the same angle on both sides, but with more material removed from one side than the other. This creates a thinner, more directional cutting edge that allows the knife to track more precisely through food. Because of this bias, offset edges are set up for either right- or left-handed use.

On double-bevel knives with uneven tapers, the edge must be sharpened to match. The asymmetry comes from the sharpening ratio—not from changing the angle from side to side. `

Asymmetrical edges are common in Japanese double-bevel knives, but can also be applied to Western knives with even blade tapers based on user preference.

Whether the blade taper is even or uneven, the way the edge is applied ultimately determines how the knife performs in use.

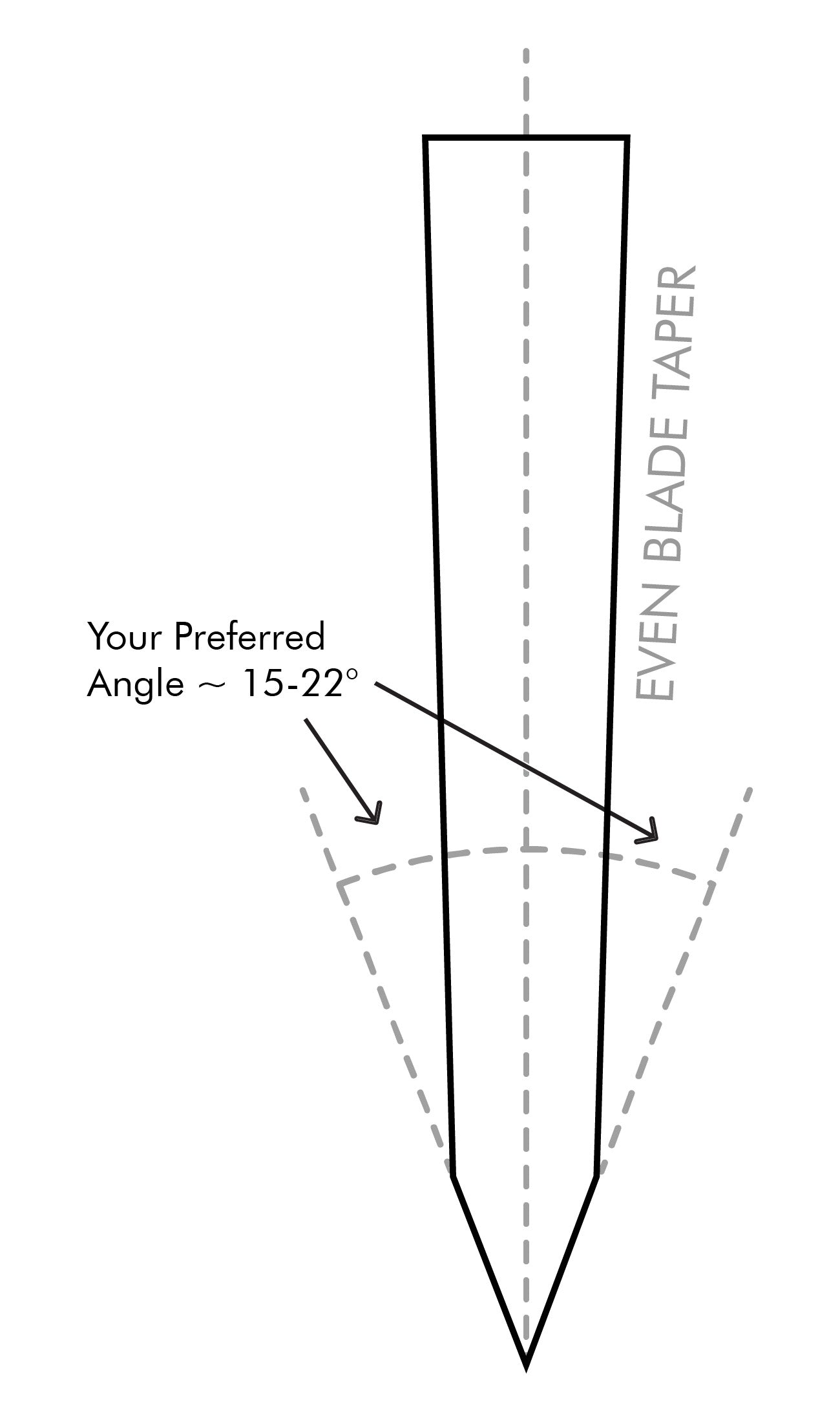

Diagram of a Double Bevel Symmetrical Edge With Even Blade Taper

Symmetrical Edge

Ratio - 50:50

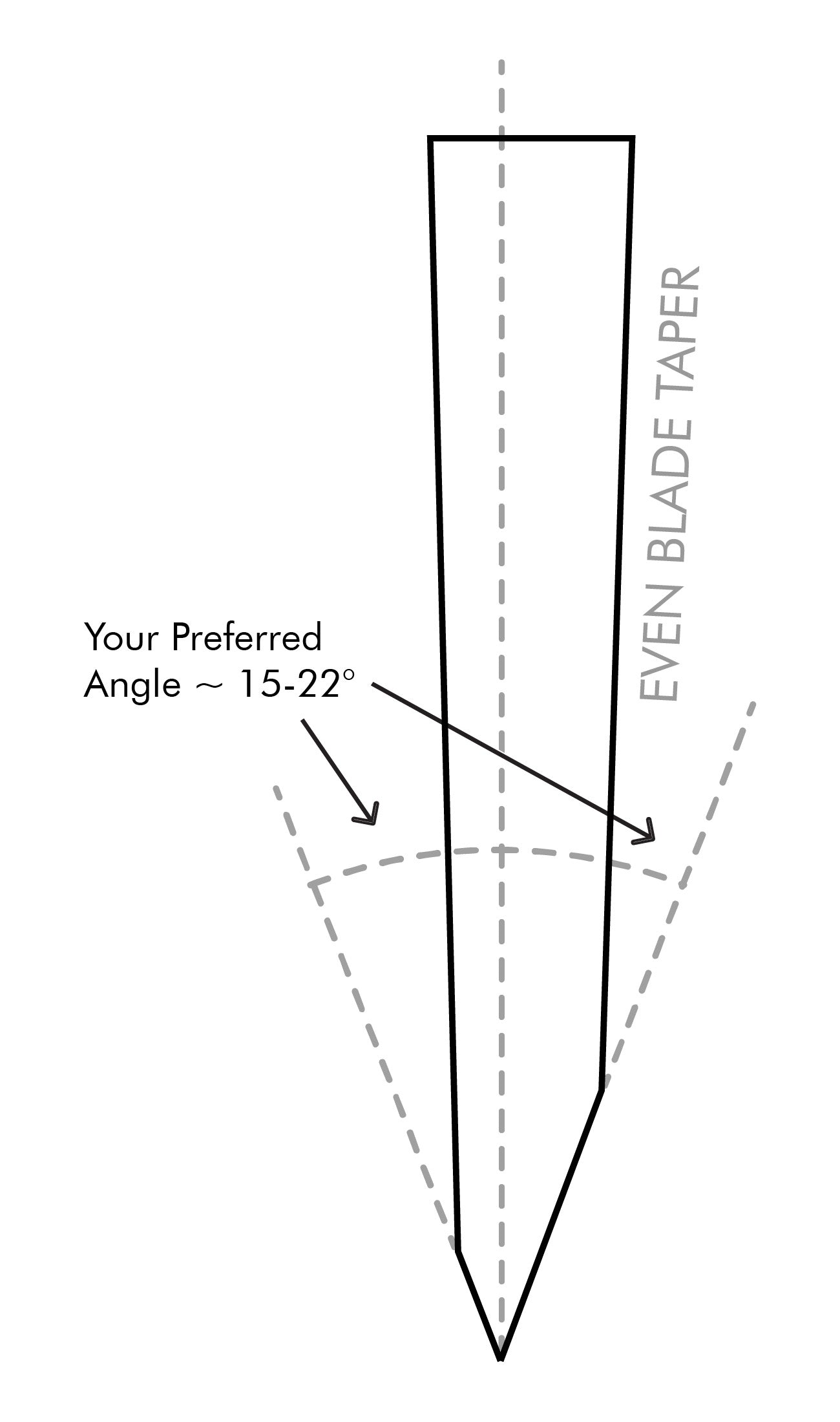

Diagram of a Double Bevel Asymmetrical Edge With Even Blade Taper

Asymmetrical Edge

Ratio - 70:30 / 80:20 / 90:10

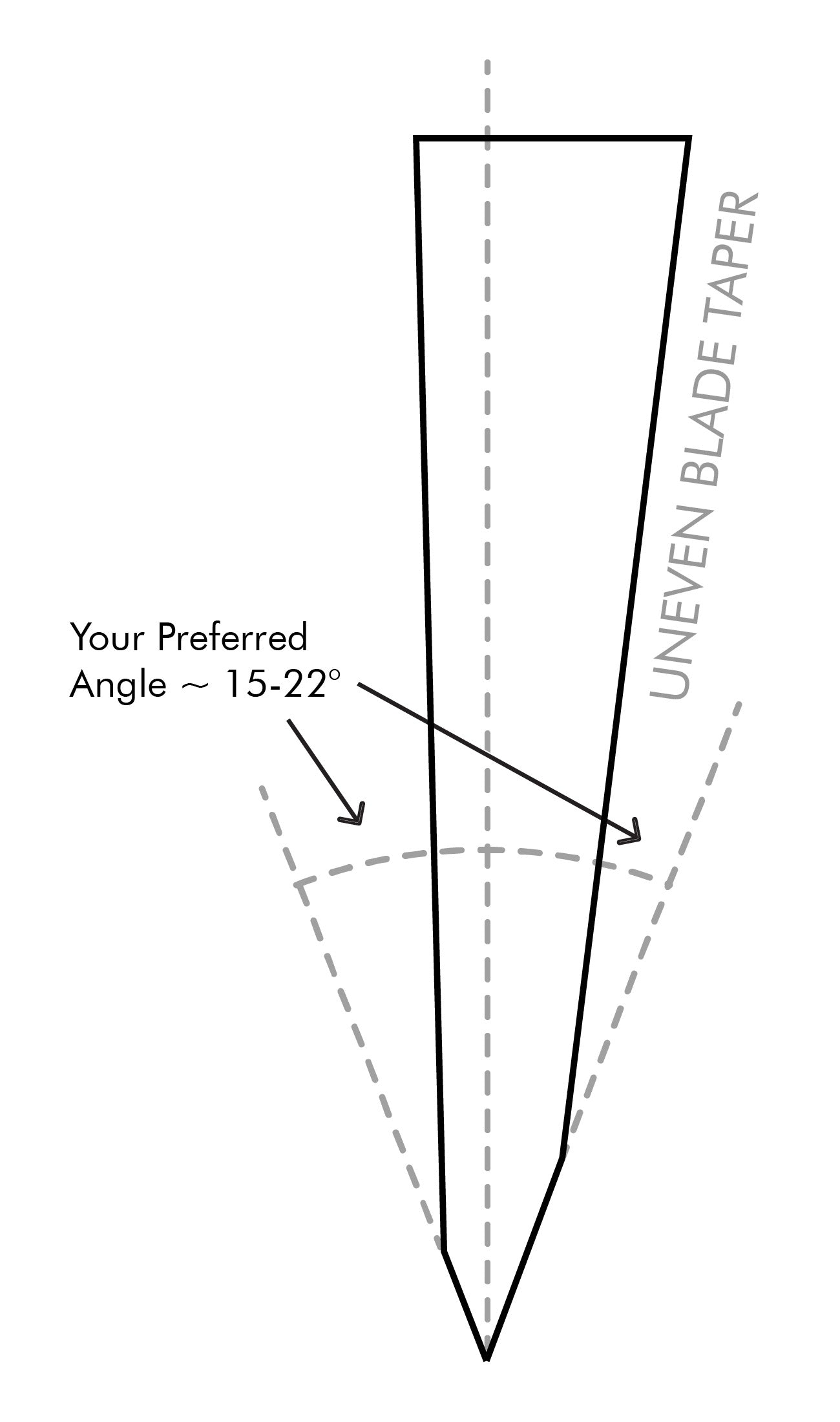

Diagram of a Double Bevel Asymmetrical Edge With Uneven Blade Taper

Asymmetrical Edge (Uneven Taper)

Ratio - 70:30 / 80:20 / 90:10

How the edge is applied affects performance—but blade geometry influences how that edge can be shaped. Even tapers can accept symmetrical or asymmetrical edges, while uneven tapers require a matching asymmetrical edge. Not to be confused with single-bevel knives, which use a fundamentally different geometry.

Edge & Blade Geometry

Single-Bevel

Single-bevel knives use a different blade and edge geometry system altogether. Originating in Japan, they are designed for highly specific tasks such as fish butchery, vegetable preparation, noodle work, and precision slicing. These knives are commonly used in professional Japanese kitchens, especially in sushi.

Unlike double-bevel knives, single-bevel knives are sharpened primarily on one side. The front side forms a wide bevel that creates the cutting edge, while the back side is slightly concave. This geometry produces a more aggressive taper, allowing for extremely precise and efficient cuts.

Edge angles typically range from about 10° to 18°, depending on the knife. Thicker knives like a Deba are ground at wider angles for strength and durability, making them suitable for heavier tasks like fish butchery. Thinner knives like a Yanagiba use narrower angles for cleaner, more delicate cuts.

These knives are always hand-specific.

Because of their asymmetrical design, single-bevel knives will naturally steer slightly during use and require more control and technique. Once understood, they offer a level of precision that is difficult to achieve with double-bevel knives.

Within this geometry, there are three primary approaches to finishing the edge: Koba, Hiratogi, and Hamaguriba.

Single-Bevel Koba Diagram

Edge & Blade Geometry

Koba (小刃)

Koba is the most commonly applied edge from the factory. It introduces a small micro-bevel at the cutting edge, increasing strength and durability.

This approach offers a balanced combination of sharpness and edge retention, making it practical for everyday use. Many users choose to maintain this edge, while others may refine it further depending on their needs.

Single-Bevel Hiratogi Diagram

Edge & Blade Geometry

Hiratogi (平研ぎ)

Hiratogi produces the most refined and acute edge by removing the micro-bevel and bringing the edge to its thinnest possible geometry.

This results in extremely clean, precise cuts, but with reduced durability. It is most often used on slicing knives such as Yanagiba and Takohiki.

This level of sharpening is sometimes referred to as Honbazuke, meaning a fully finished edge.

Single-Bevel Hamaguriba Diagram

Edge & Blade Geometry

Hamaguriba (蛤)

Hamaguriba introduces a subtle convex shape near the edge, increasing strength and resistance to chipping.

Named after a clam shell, this rounded micro-bevel on the cutting edge profile trades a small degree of sharpness for improved durability. It is commonly used on heavier-duty knives such as Deba.

In practice, this convexity is often created by blending angles near the edge rather than forming a fully rounded bevel, resulting in a durable yet still highly effective cutting edge.
